Laboratory Roll-to-Roll Coater (LR2RC) by infinityPV

A compact, modular roll-to-roll lab coater for high-precision thin-film coating and printing.

The Laboratory Roll-to-Roll Coater (LR2RC) from infinityPV is a versatile, high-precision system designed for researchers and developers working with functional thin films. Available in four platform lengths and two widths, it bridges the gap between laboratory-scale R&D and small pilot-scale production — fitting seamlessly into standard lab benches, fume hoods, or gloveboxes without additional infrastructure.

The LR2RC is trusted by leading research institutions and industry groups worldwide for applications including batteries, fuel cells, printed solar cells, OLEDs, transistors, sensors, membranes, and pharma/medtech films.

Key Features

Compact and lab-friendly — fits in laboratories, fume hoods, and argon gloveboxes without modification
Modular, customizable design — choose platform size and build from a wide library of interchangeable components
Scalable — processes up to 100 m of foil, bridging lab research and pilot-scale production
Web tension control — ensures consistent coating thickness and quality across runs
Software control option — touchscreen, manual adjustment, or PC control for precision and repeatability
CE certified / CSA/UL compliant — meets international safety standards
Stop-and-go and forward-reverse operation — supports a wide range of deposition workflows

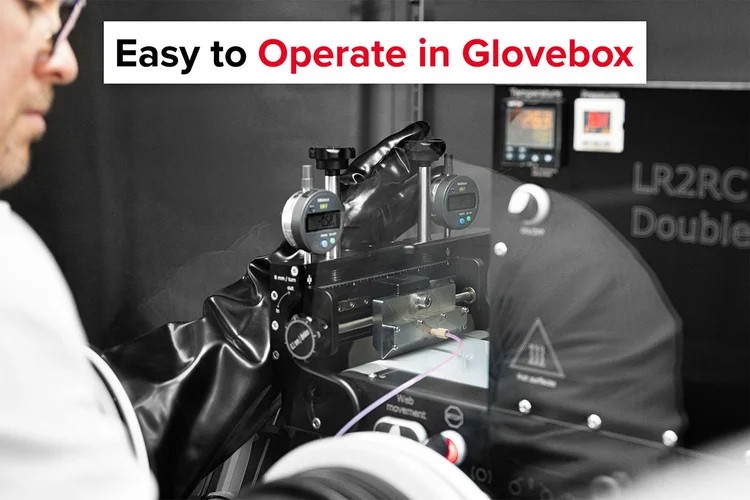

Glovebox compatible — tested under argon atmosphere

Technical Specifications

Parameter	Specification	Notes
Platform Dimensions & Weight	LR2RC500: 500 × 390 × 300 mm / 30 kg LR2RC750: 750 × 390 × 300 mm / 40 kg LR2RC750 Wide: 750 × 500 × 300 mm / 50 kg LR2RC1000: 1000 × 390 × 300 mm / 50 kg LR2RC1000 Wide: 1000 × 500 × 300 mm / 60 kg LR2RC1500: 1500 × 390 × 300 mm / 80 kg LR2RC1500 Wide: 1500 × 500 × 300 mm / 100 kg	Total weight and dimensions depend on final configuration
Power Supply	LR2RC500: Single phase (240 VAC) LR2RC750: Single phase (240 VAC) LR2RC750 Wide: Single phase (240 VAC) LR2RC1000: Three-phase (400 VAC) LR2RC1000 Wide: Three-phase (400 VAC) LR2RC1500: Three-phase (400 VAC) LR2RC1500 Wide: Three-phase (400 VAC)
Drying / Curing Section Length	LR2RC500: 250 mm LR2RC750 / LR2RC750 Wide: 500 mm LR2RC1000 / LR2RC1000 Wide: 750 mm LR2RC1500 / LR2RC1500 Wide: 1250 mm	Depends on selected oven systems
Web Width	Up to 200 mm (standard models) Up to 310 mm (wide models)
Coating Width	Up to 180 mm (standard models) Up to 280 mm (wide models)
Web Speed	0.05 – 2.8 m/min (forward and reverse)	Other speeds available on request
Foil Length	Up to 100 m	Depending on substrate thickness
Tension Control	Manual	Individual or collective control over rewinder and unwinder
System Control	Touchscreen / Manual Adjustment Buttons / PC Control
Spindles	Automatic compressed air spindles 3-inch core inner diameter	LR2RC500 uses adjustable cones accepting core inner diameters from 35 mm to 90 mm

Configurable Components

The LR2RC is a modular platform. Below is the full list of available components — each can be added at the time of purchase or retrofitted later. Contact us for a custom quotation.

Category	Component	Platform Compatibility	More Info
Platforms	LR2RC500	Laboratory Roll-to-Roll Coater	View
	LR2RC750	Laboratory Roll-to-Roll Coater	View
	LR2RC750 Wide	Laboratory Roll-to-Roll Coater	View
	LR2RC1000	Laboratory Roll-to-Roll Coater	View
	LR2RC1000 Wide	Laboratory Roll-to-Roll Coater	View
	LR2RC1500	Laboratory Roll-to-Roll Coater	View
	LR2RC1500 Wide	Laboratory Roll-to-Roll Coater	View
	LR2RC500 Bundle	Laboratory Roll-to-Roll Coater	View
Mounts	Simple Mount	Laboratory Roll-to-Roll Coater	View
	Advanced Mount	Laboratory Roll-to-Roll Coater	View
	Advanced Mount Wide	Laboratory Roll-to-Roll Coater	View
	PC Controlled Mount	Laboratory Roll-to-Roll Coater	View
	PC Controlled Mount Wide	Laboratory Roll-to-Roll Coater	View
	Inline Mount	Laboratory Roll-to-Roll Coater	View
	Inline Mount Wide	Laboratory Roll-to-Roll Coater	View
Pumps	Jumbo Syringe Pump	All Platforms	View
	Mammoth Syringe Pump	Laboratory Roll-to-Roll Coater	View
	Gear Pump	Laboratory Roll-to-Roll Coater	View
Coating Equipment	Slot-die Heads	All Platforms	View
	Heated Slot-die Heads	All Platforms	View
	Customized Slot-die Heads	All Platforms	View
	Heated Slot-die Head Controller	All Platforms	—
	Shim Kit (Standard)	All Platforms	—
	Shim Kit (Customized)	All Platforms	—
	Fitting Kit (Low Viscosity)	All Platforms	View
	Fitting Kit (High Viscosity)	All Platforms	View
	Slurry Coater	Laboratory Roll-to-Roll Coater	View
	Slurry Coater Wide	Laboratory Roll-to-Roll Coater	View
Flexographic Printing	Roll-to-Roll Flexographic Printer	Laboratory Roll-to-Roll Coater	View
	Roll-to-Roll Flexographic Printer Wide	Laboratory Roll-to-Roll Coater	View
	Simple Flexo Roller	All Platforms	View
Web Handling	Roll-to-Roll Laminator	Laboratory Roll-to-Roll Coater	View
	Roll-to-Roll Laminator Wide	Laboratory Roll-to-Roll Coater	View
	Air Knife Standard	All Platforms	View
	Air Knife Pro	Laboratory Roll-to-Roll Coater	View
	Inspection Plate	Laboratory Roll-to-Roll Coater	—
	Inspection Plate Wide	Laboratory Roll-to-Roll Coater	—
	Edge Guide	Laboratory Roll-to-Roll Coater	—
	Edge Guide Wide	Laboratory Roll-to-Roll Coater	—
	Stripper Unit	Laboratory Roll-to-Roll Coater	—
	Stripper Unit Wide	Laboratory Roll-to-Roll Coater	—
	Foil Turner	Laboratory Roll-to-Roll Coater	—
Cutting	Knife Cutter	Laboratory Roll-to-Roll Coater	—
	Knife Cutter Wide	Laboratory Roll-to-Roll Coater	—
	Laser Scribing System	Laboratory Roll-to-Roll Coater	—
	Wet Processing Center	Laboratory Roll-to-Roll Coater	View
Surface Treatment	SpotTEC Corona Surface Treater	Laboratory Roll-to-Roll Coater	View
	SpotTEC Corona Surface Treater Wide	Laboratory Roll-to-Roll Coater	View
	LabelTEC Corona Surface Treater	Laboratory Roll-to-Roll Coater	View
	LabelTEC Corona Surface Treater Wide	Laboratory Roll-to-Roll Coater	View
Drying & Curing Systems	Inert Gas Oven	Laboratory Roll-to-Roll Coater	View
	Inert Gas Oven Wide	Laboratory Roll-to-Roll Coater	View
	Infrared Oven	Laboratory Roll-to-Roll Coater	View
	IR Oven with Option for Inert Gas	Laboratory Roll-to-Roll Coater	View
	IR Oven with Option for Inert Gas Wide	Laboratory Roll-to-Roll Coater	View
	UV Oven	Laboratory Roll-to-Roll Coater	View
	UV-LED Oven	Laboratory Roll-to-Roll Coater	View
	UV-LED Oven Wide	Laboratory Roll-to-Roll Coater	View
	Combo Oven: Hot-Air / Inert Gas / IR	Laboratory Roll-to-Roll Coater	View
	Double Inert Gas Oven	Laboratory Roll-to-Roll Coater	View
	Double Inert Gas Oven Wide	Laboratory Roll-to-Roll Coater	View
Rollers & Nip Rollers	Glovebox Kinematic Platform	All Platforms	View
	Manual Nip Roller and Simple Laminator	Laboratory Roll-to-Roll Coater	—
	Manual Nip Roller and Simple Laminator Wide	Laboratory Roll-to-Roll Coater	—
	Adjustable Nip Roller	Laboratory Roll-to-Roll Coater	—
	Adjustable Nip Roller Wide	Laboratory Roll-to-Roll Coater	—
	Rollers	Laboratory Roll-to-Roll Coater	—
