Cost-Effective, Non-Contact Ultrasonic Cleaning for Films, PCBs, Batteries, and More

The VUV Series Ultrasonic Dry Cleaner delivers powerful non-contact particle removal while maintaining low operational costs—making it the ideal solution for high-throughput manufacturing lines. Using advanced ultrasonic technology, the VUV achieves 100% removal of particles down to 3.0 μm without ever touching the substrate.

Whether used in roll-to-roll processing of films or cleaning flat substrates such as glass or PCBs, the VUV ensures high performance, safe operation, and long-term reliability.

Key Features

✅ Non-Contact Cleaning: Prevents surface damage while thoroughly removing contaminants.

✅ Efficient Particle Removal: Eliminates 100% of particles ≥3.0 μm.

✅ Stable Performance: Ultrasonic effectiveness remains consistent over time.

✅ Low Running Cost: Designed for efficient operation in continuous manufacturing environments.

✅ Versatile Setup: Compatible with roll-to-roll and flat substrate processes.

✅ Broad Industry Application: Trusted for use in film, glass, PCB/FPCB, batteries, and display cleaning.

Detailed Product Information

Performance & Testing

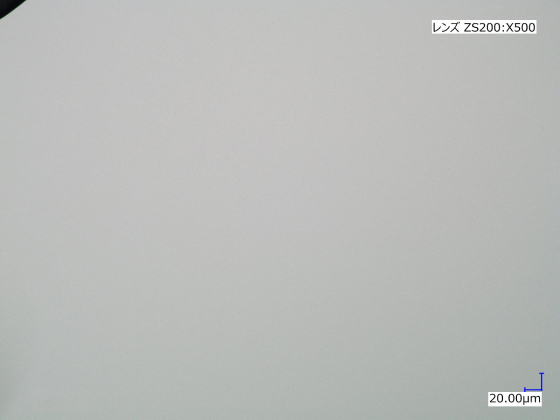

In cleanroom testing at SHINKO, the VUV demonstrated outstanding cleaning efficiency on glass substrates under high-speed conditions. Even at a line speed of 200 meters per second, the system achieved complete removal of 3 μm spacer beads at a distance of 1.5 mm from the substrate.

Test Parameters:

• Substrate: Glass

• Pressure: 14 kPa

• Cleaning Distance: 1.5 mm

• Line Speed: 200 m/sec

• Particles: 3 m spacer beads

Note: Removal rates may vary depending on the type of particles and testing environment.

Application Versatility

The VUV Series supports a wide range of substrate types across several key industries:

• Films & Foils – Including paper, metallic foil, and plastic films

• Glass Panels – Used in optics, displays, and semiconductors

• Rechargeable Batteries – Electrode films and battery components

• LCD/OLED – Sensitive display layers and substrates

• PCBs & FPCBs – Surface prep for printed and flexible circuit boards

• Semiconductors & Automotive Components – Cleanroom-level treatment for precision parts
