McDry Ultra-Low Humidity Storage Cabinets: Photo Gallery of Storage Applications

Storage of IC packages Within McDry

DXU-1001A

Example of component storage in McDry awaiting the mounting process.

DXU-1001A

Example of high-mix IC package storage in McDry in warehouse

MCU-340A

Example of ICs in high-volume manufacturing facility storage area.

DXU- 1001A

Example of high-mix IC package storage in McDry in warehouse.

DXU- 1001A

Example of component storage in tape and reel.

DXU-1001A

Example of long term storage of unopened IC pacakage.

MCU-201A

Storage of left over componenets at the end of a shift.

MCU- 201A

Example of remaining component storage after opening MBB for processing.

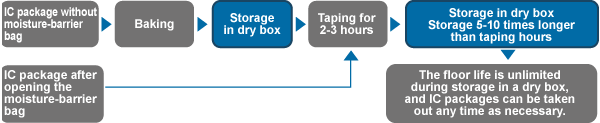

IC Package Taping Using McDry

Examples of McDry Applications (Items that require low-humidity storage)

1

Low-humidity storage of IC packages (MSD) which have been removed from moisture barrier bags. (To sHOME the floor life clock of CSPs, BGAs, TQFPs, etc.)

  1. Low-humidity storage of MSDs before and leftover after implementation.
  2. Low-humidity storage of MSDs that hve been removed from mounter.
  3. Low-humidity storage of MSDs when writing ROMs.
2 Dry storage of semi-mounted PCBs. Effective low-humidity storage of PCBs awaiting second-side reflow.
3 Drying and storing multilayer PC boards before and after the mounting process.
4 Dry storage of pattern film and prepreg used in the manufacturing of PCBs.
5 Clean, room temperature drying of liquid crystal glass boards after washing. Results in even drying and prevents contamination.
6 Dry storage of quartz crystals and electrode adhesives used in the manufacturing of quartz oscillators.
7 Dehumidification and low-humidity storage of optical fiber (micro-lens for WDM) and CCD (charge-coupled device)
8 Slows down oxidation and prevents corrosion of electronic components and provides low-humidity storage of polymeric materials.

Example of use of McDRY in mounting process (Products that need low-humidity storage)
