McDry Ultra-Low Humidity Storage Cabinets: Performance of McDry

Test Data of Humidity Levels Within McDry Cabinets
Ambient test conditions: 25℃, 60%RH

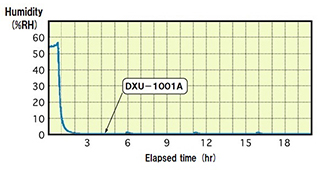

DXU-1001A (1%RH)

(Ambient test conditions : 25℃, 60%RH)

MC-1001A (1%RH)

(Ambient test conditions : 25℃, 60%RH)

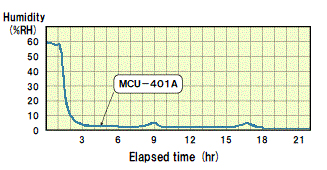

MCU-401A (1%RH)

(Ambient test conditions : 25℃, 60%RH)

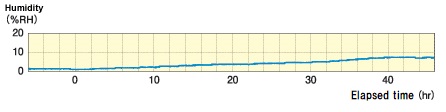

DXU-1001A(1% RH)

Change in humidity inside the dry box after power is turned off (Assumption of service interruption)

(Ambient test conditions : 25℃, 60%RH)

Data on Door Opening/Closing

MCU-401A (1%RH)

MC-1001A (1%RH)

DXU-1001A (1%RH)

Electrostatic Discharge of McDry: ESD Control

The electrostatic discharge of McDRY conforms to IEC61340-5-1.

Resistance (R)=1 x 104 Ω ≦ R ≦ 1 x 1010

Between Shelves

Shelf ← → Door



Shelf ← → Ground

Door ← → Ground
