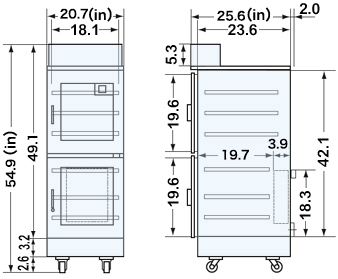

MB-301 Low Temperature & Low Humidity Baking Cabinet, 40°5%RH

MB-301

Features

  • Baking Temperature: 40° (MAX.50°)
  • Humidity Level: 5%RH (during bake out period)
  • Can be used as a regular dry storage cabinet when heater for baking is turned off.
  • Humidity Level: 3%RH (during dry storage)
  • Electrostatic Discharge: Conforms to IEC-61340-5-1 (ESD) Standard for Handling
  • Installed with a powerful quick-dehumidifying drying unit
  • Equipped with a large display digital RH meter
  • 1MΩ Ground Terminal included
  • Shelves can hold 50kg
Item/type MB-301 Low Temperature & Low Humidity Baking Cabinet
Humidity Control Automatic Adjustment Dial
Outside dimensions W20.67×D25.59×H52.36 (in)
Inside dimensions W18.90×D23.62×H42.52 (in)
Capacity (l) 310
Dry Unit US-4000K
Material Bonderized Steel, Melamine High Temp. Coating (Color: Ivory)
Doors (Magnetic) 2 Doors with glass windows
Weight 70Kg
Power AC220V (50/60Hz)
Electrical Requirement 650W/h (Max)
Accessories Included 5 Shelves, Key, RH Meter, Ground Terminal

MCµ-401 Hepa Filter Model, 3%RH

MB-301

Features

  • Hepa Filter System, Class 100
  • Electrostatic Discharge: Conforms to IEC-61340-5-1 (ESD) Standard for Handling
  • Installed with a powerful quick-dehumidifying drying unit
  • Equipped with a large display digital RH meter
  • Shelves can hold 50kg
Item/type MCµ-401 Hepa Filter Model
Humidity Control Automatic Adjustment Dial
Outside dimensions W19.69×D24.80×H60.24 (in)
Inside dimensions W18.90×D23.62×H55.51 (in)
Capacity (l) 300
Dry Unit US-4000
Material Bonderized Steel, Melamine High Temp. Coating (Color: Ivory)
Doors (Magnetic) 2 Doors with glass windows
Weight 70Kg
Power AC220V (50/60Hz)
Electrical Requirement 48W/h (Max260W)
Accessories Included 5 Shelves, Key, RH Meter, Ground Terminal

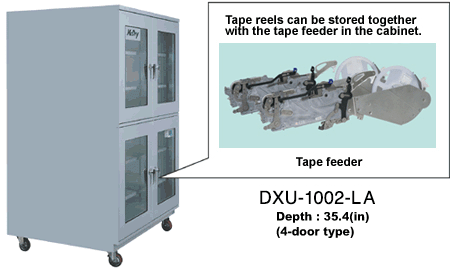

DXU-1002-L 2% RH (Deep Style)

Storage cabinet for tape feeder with reel

In the text box of Tape Feeder, change to: Tape reels can be stored attached to the feeder and placed in the cabinet.

DXU-1002-L
DXU-1002-L Drawing

Item/type DXU-1002-L
External Dimensions 47.2Wx37.4Dx72.8H(in)
Internal Dimensions 45.3Wx35.4Dx62.0H(in)
Capacity Approx 56 Cu Feet (1600 Liters)
Dry Unit US-5000x2
Material Higt-grade steel construction with ESD-safe and Anti corosion coating
Color Silver
Doors (Magnetic) 4 Doors with glass windows
Weight Approx 550 lbs., 250kgs
Electrical Requirement AC 120V(50/60Hz)94w/h(Max 740w)
Accessories Included Casters, RH, Meter, 5 Shelves

In addition to the type shown above, deeper cabinets are also available. Contact us for details

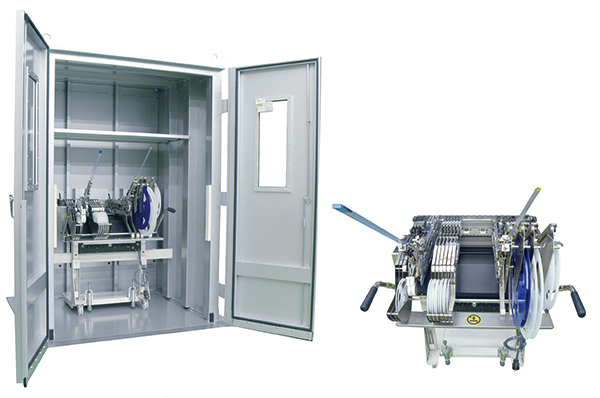

DXU-4006 2% RH

Feeder wagon and magazine rack storage cabinet

DXU-4006
DXU-4006 Drawing

Door opening/closing data (The two doors are kept opened for 5 and 10 minutes.)

DXU-4006 Test Data

Item/type DXU-4006
External Dimensions 65.0Wx52.0Dx86.8H(in)
Internal Dimensions 58.6Wx43.3Dx84.0H(in)
Capacity Approx 134 Cu Feet (3800 Liters)
Dry Unit US-5000x8
Material Higt-grade steel construction with ESD-safe and Anti corosion coating
Color Ivory
Doors (Magnetic) 2 Doors with glass windows
Weight Approx 2,200 lbs., 1,000 kgs.
Electrical Requirement AC 120V(50/60Hz)380w/h(Max 500w)
Accessories Included Casters, RH Meter, 1 Shelf

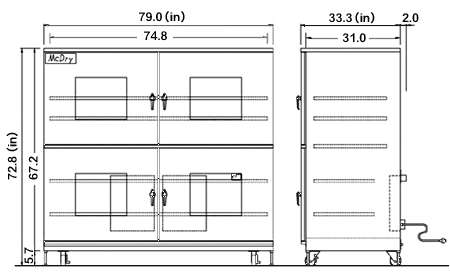

DXU-1004-800

Large storage cabinet

DXU-1004-800
DXU-1004-800 Test Data

Item/type DXU-1004-800
External Dimensions 79.0W x33.3Dx72.8H(in)
Internal Dimensions 74.8Wx31.0Dx62.0H(in)
Capacity Approx 84 Cu Feet (2400 Liters)
Dry Unit US-5000x2
Material Higt-grade steel construction with ESD-safe and Anti corosion coating
Color Silver
Doors (Magnetic) 4 Doors with glass windows
Weight Approx 1,000 lbs. (450kgs.)
Electrical Requirement AC 120V(50/60Hz)94w/h(Max 740w)
Accessories Included Casters,RH Meter,1 shelves

In addition to the type shown above, deeper types are also available. Contact us for details.

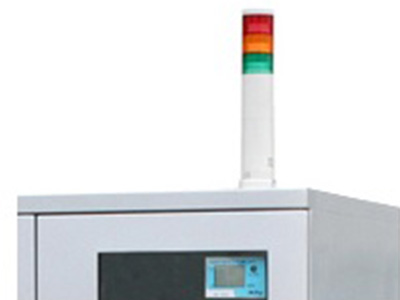

Light Tower and Audible Alarm

Hygrometer with alarm

Light Tower and Audible Alarm

HM-1001 Ultra-Low & Quick-Dehumidifying Storage Cabinet

HM-1001 Ultra-Low & Quick-Dehumidifying Storage Cabinet

McDry Electronic Drying Storage Cases provide optimal ultra-low humidity and moisture-proof storage for IC packages. The HM-1001 can maintain 1%RH and removes moisture at a very fast rate by use of a powerful zeolite desiccant.

Features

  • Drying unit including fan quickly dehumidifies
  • Door opening/closing frequency: Once every 10-20 minutes
  • Equipped with a digital RH Meter
  • Doors seal tightly and lockable.
  • Compliant to ESD-IEC61340-5-1 standard.
  • Powerful desiccant never needs replacement.
  • Shelves are adjustable and can hold 220 lbs (100 kg).
External Dimensions 47.24W x 27.56D x 72.83H (in)
1200W x 700D x 1850H (mm)
Capacity Approx 1200 Liters
Doors (Magnetic) 6 Doors with glass windows
Power AC120V (50/60Hz)
Accessories 5 Shelves, Keys, RH Meter
Casters (with Stopper)
Ground Terminal

Upgrade Available

The drying units for HM-1001 can be installed into your DXU-1001 or DXU-1002 model and removes moisture at double the speed. Please contact us for a quotation!

Opening-Closing Data of HM-1001

Opening-Closing Data of HM-1001
HM-1001 Graph
